Install Instructions

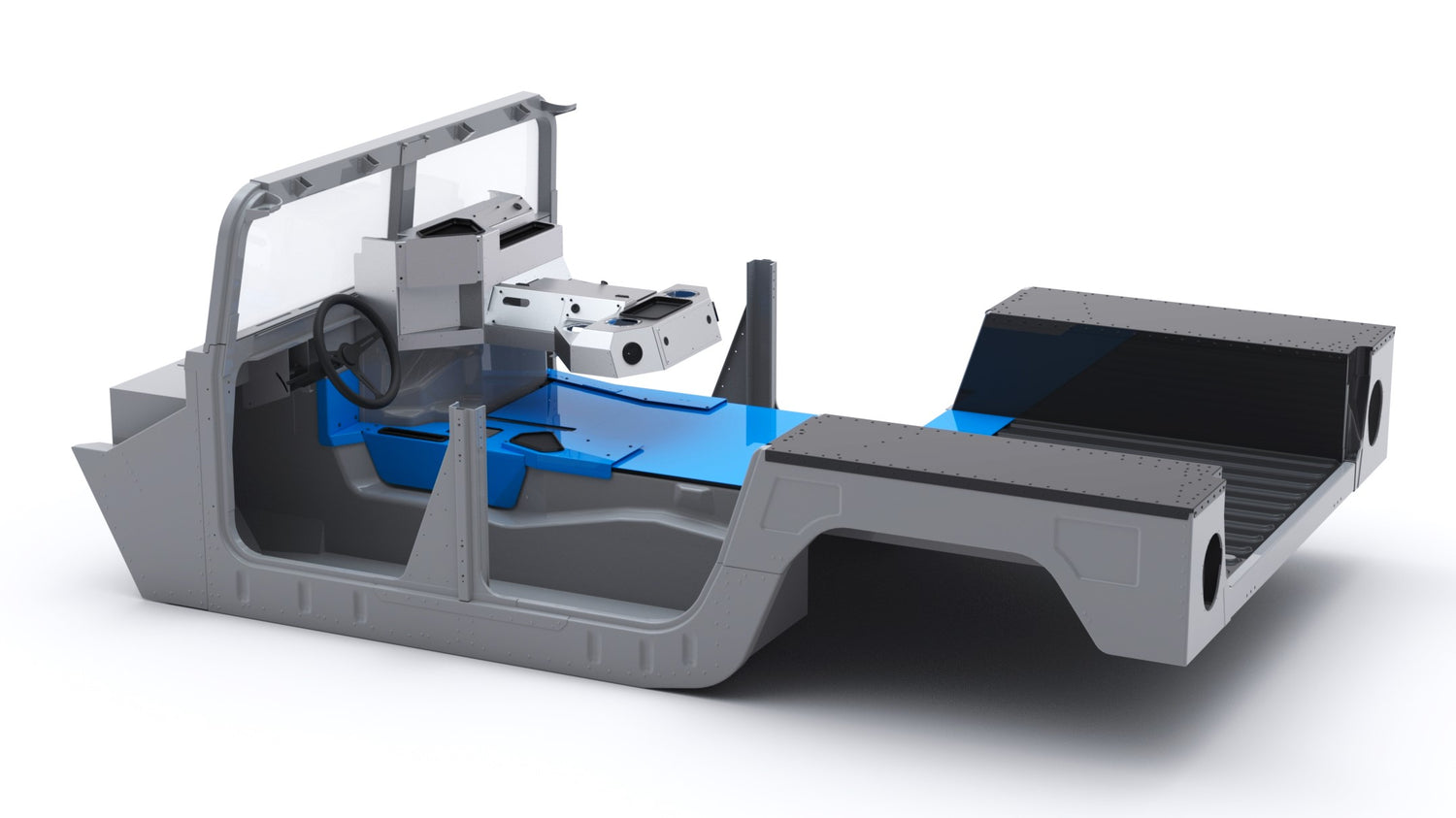

Tunnel Trim Kit
This kit should be installed before you install the dashboard or center console. All screws are included, but you will need to supply any glue, carpet, sound deadening and upholstry.

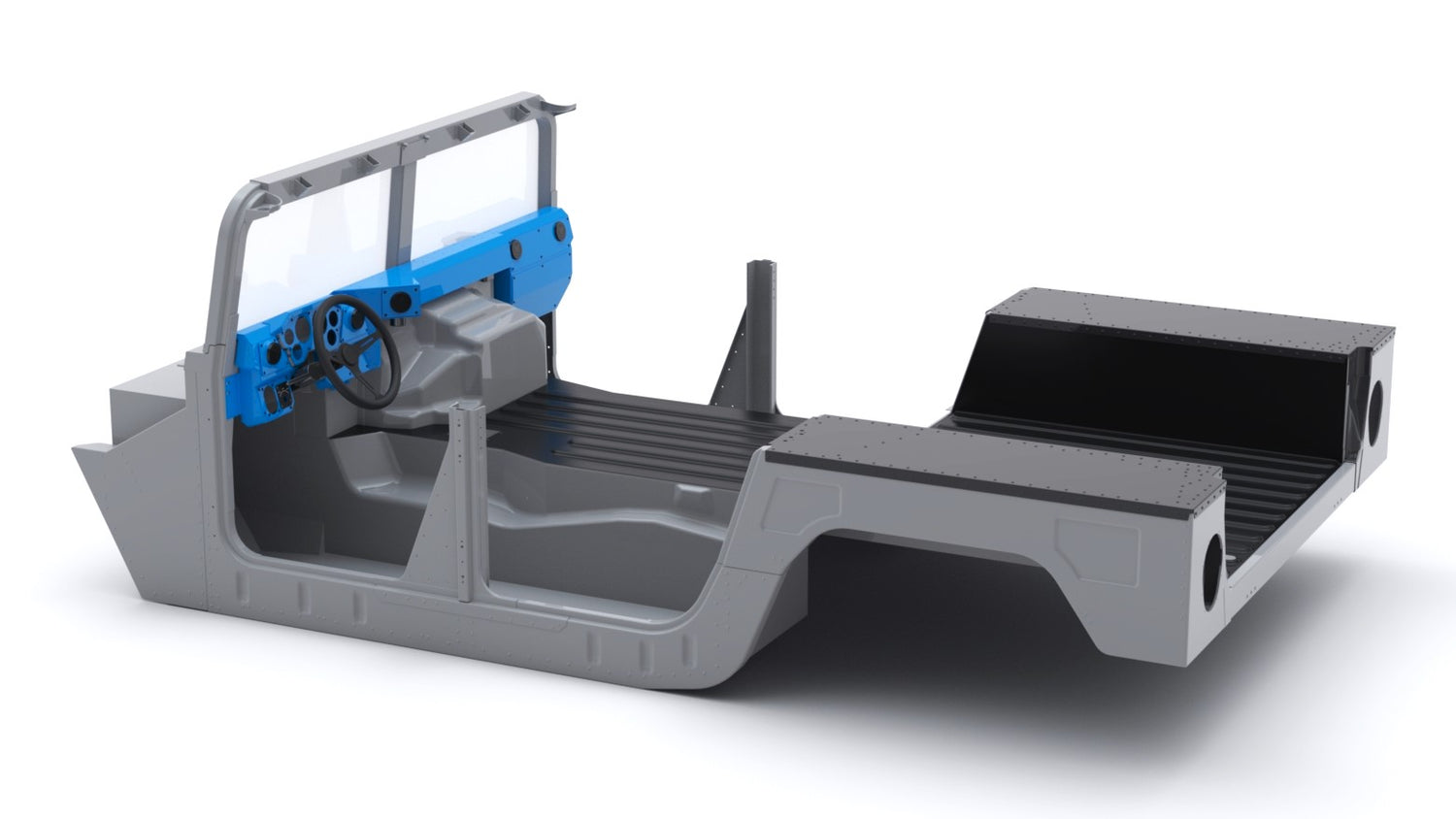

Dashboard
This kit should be installed after you install the tunnel trim kit and before you install the center console. All screws and hardware are included, but you will need to supply any glue, sound deadening and upholstery. Louvers are included, but duct hose will come with your vintage air kit and is not included with the dash.

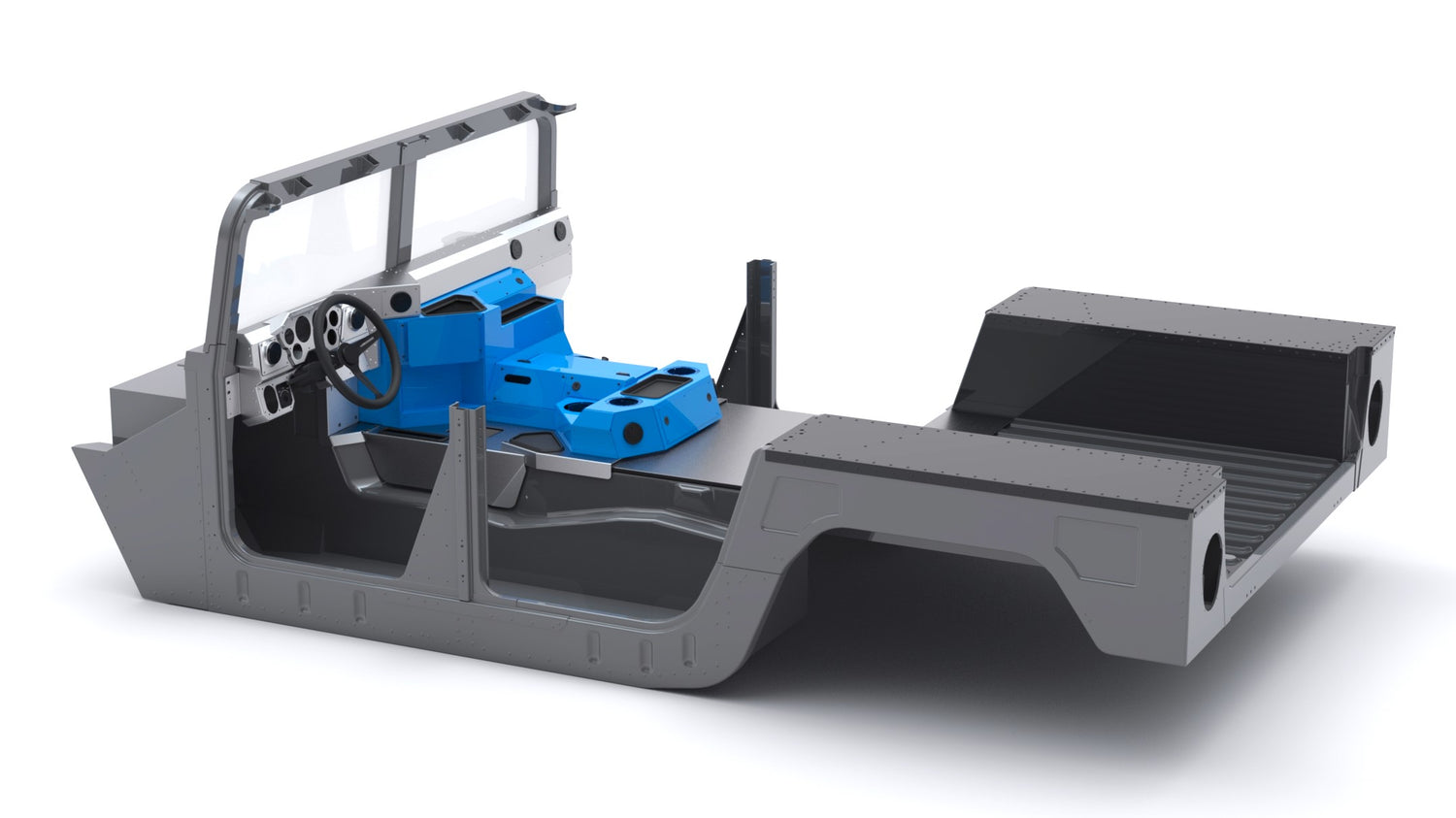

Center Console
This kit should be installed after you install the tunnel trim kit and Dashboard. All screws and hardware are included, but you will need to supply any glue, sound deadening and upholstery. Louvers are included, but additional 2" duct hose will need to be purchased.

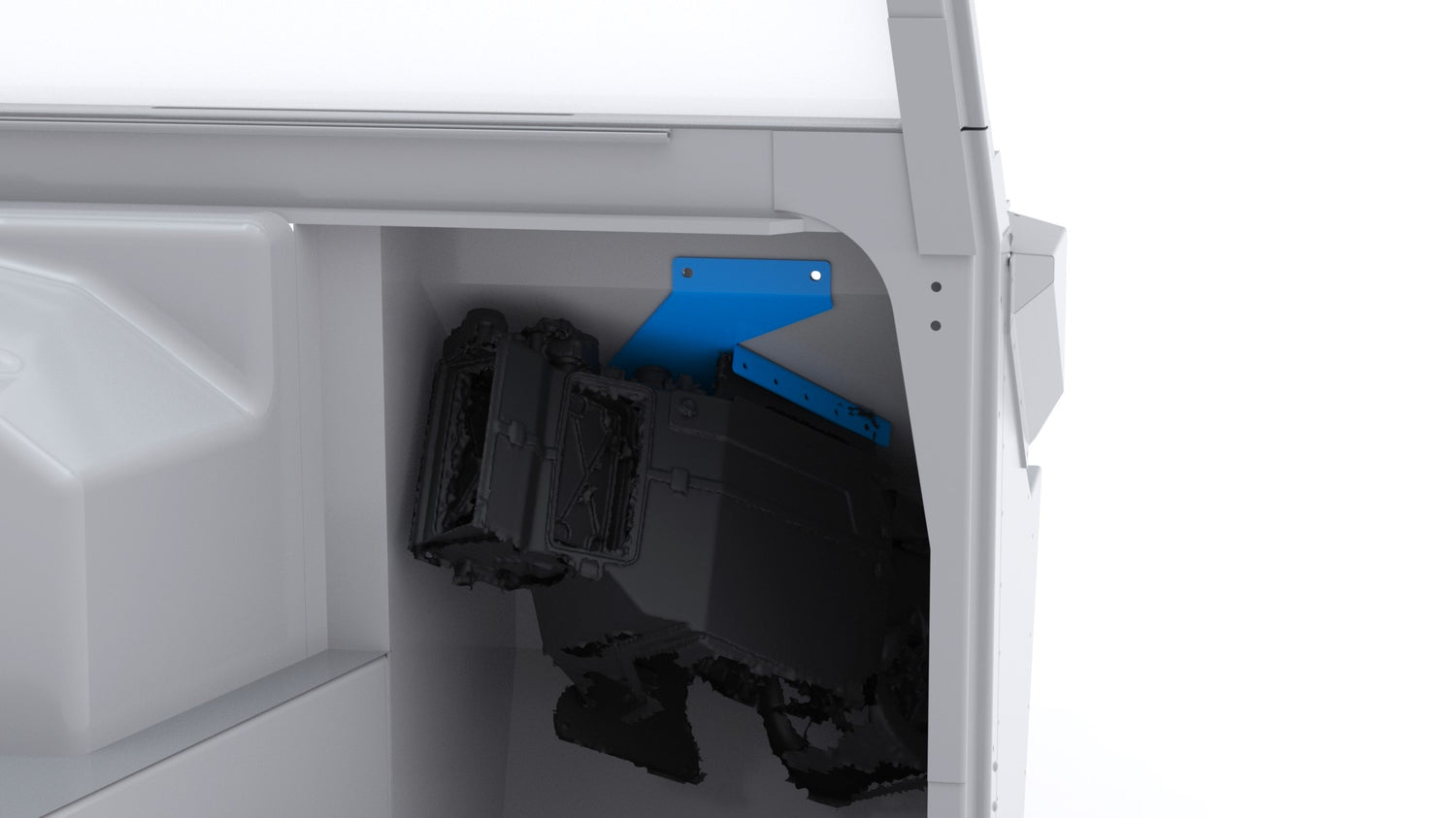

Vintage Air Evaporator
This will require the purchase of the Pipe Dream Adapter Kit, as well as the Vintage Air Gen 5 Magnum Evaporator. The vintage air evaporator will include its own instruction manual for installation. This video will supplement Vintage Air instruction manual to work with the Pipe Dream dashboard application.

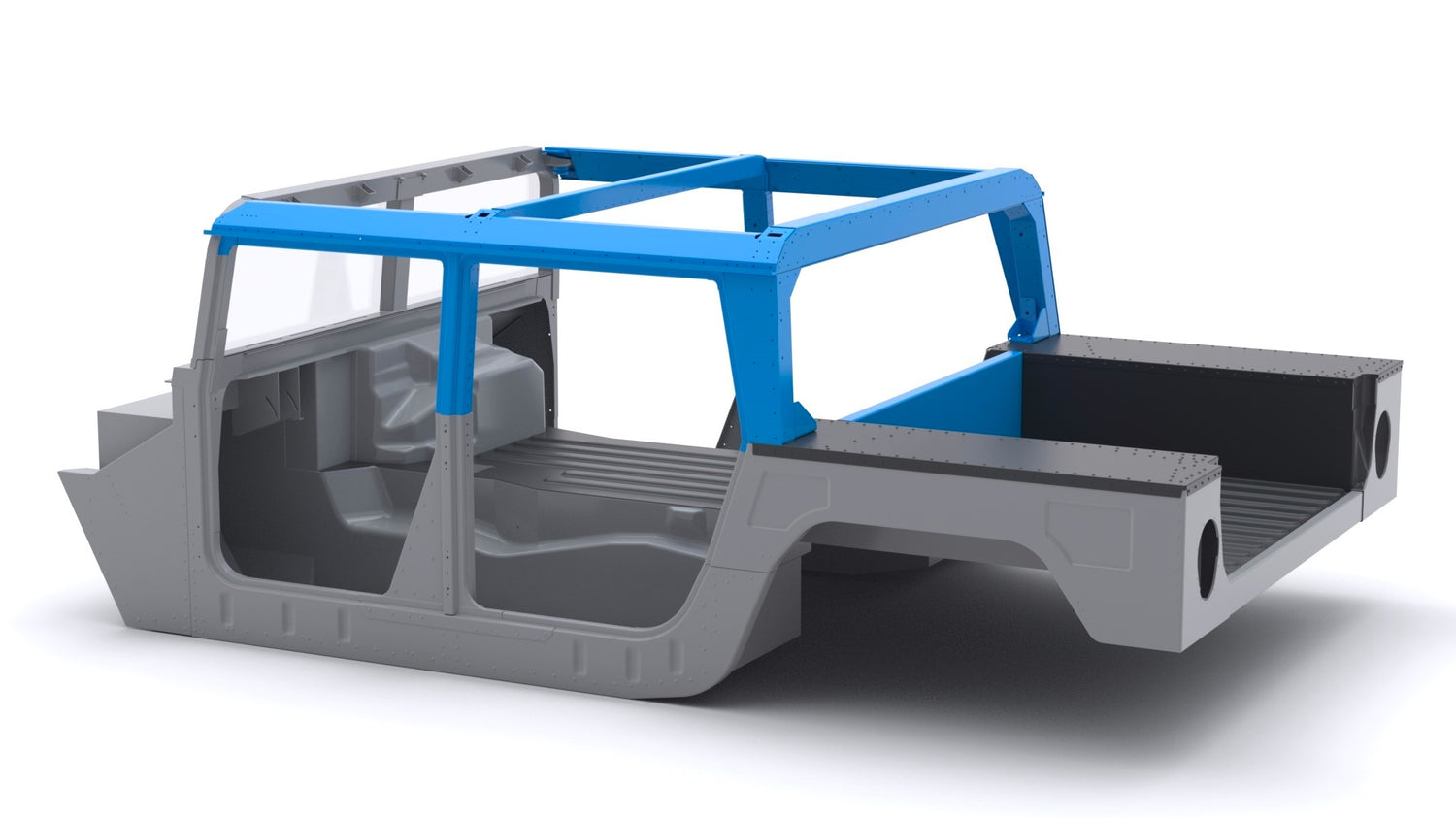

Modular Sub Frame
This kit should be installed prior to any of the modular tops. All hardware and adhesives required are included in the kit.

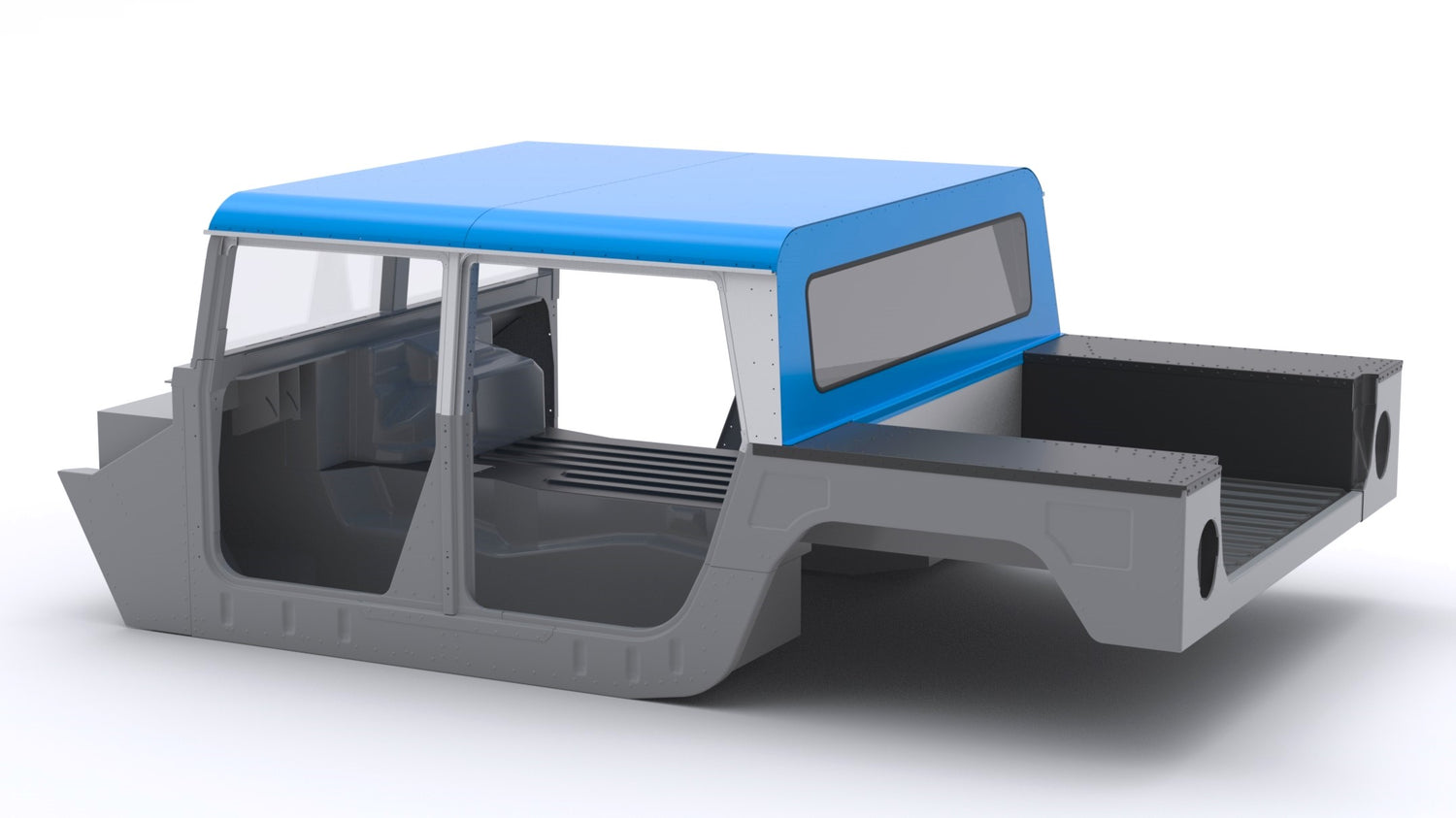

Removable Top
The removable top should be installed prior to the removable back or the fixed back. The fixed back installs in the same way as the removable back. All screws and adhesives required are included in the kit.
Fixed Top
The Fixed top should be installed prior to the fixed back. The fixed back installs in the same way as the removable back. All screws and adhesives required are included in the kit.
